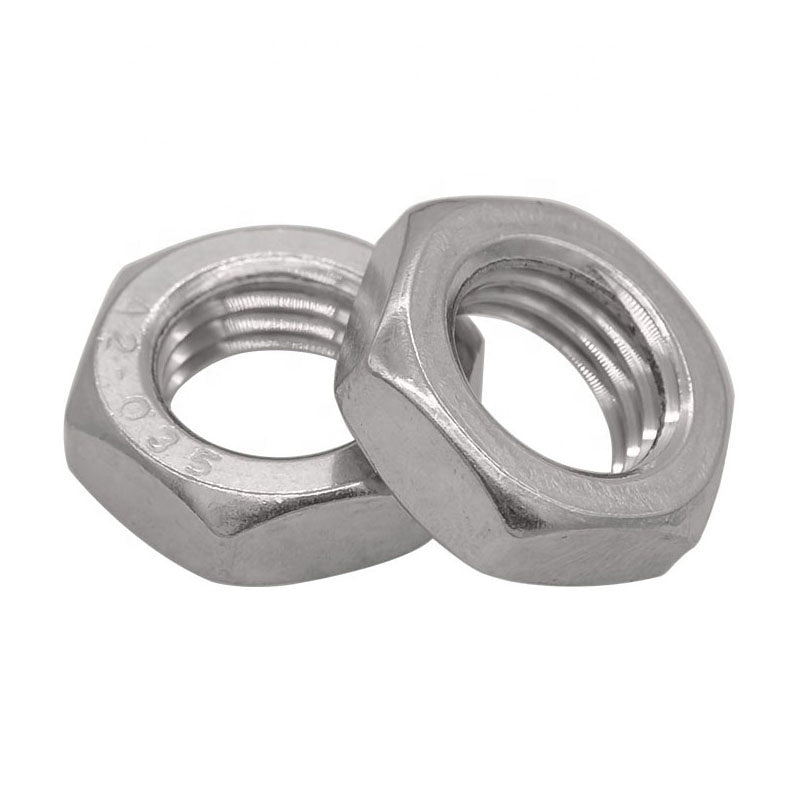

Metric 304 Stainless Steel Lock Nut (Thin Nuts)
( SS 304 / A2 SS ) ( Lock Nuts / Check Nuts / Thin Nuts )
304 Stainless Steel
Standard: DIN 439
Technical Specification
| Fastener Type | Nuts |
| Nut Type | Lock Nuts |
| System of Measurement | Metric |
| Material | Stainless Steel |
| Finish / Grade | SS 304 |
| Standard | DIN 439 |
| Diameter | Height | Width Across Flats |
| M5 | 2.7mm | 8mm |
| M6 | 3.2mm | 10mm |
| M8 | 4mm | 13mm |
| M10 | 5mm | 17mm |
| M12 | 6mm | 19mm |
| M14 | 7mm | 22mm |
| M16 | 8mm | 24mm |
| M18 | 9mm | 27mm |
| M20 | 10mm | 30mm |
| M22 | 11mm | 32mm |
| M24 | 12mm | 36mm |
Tolerance as per Standard
