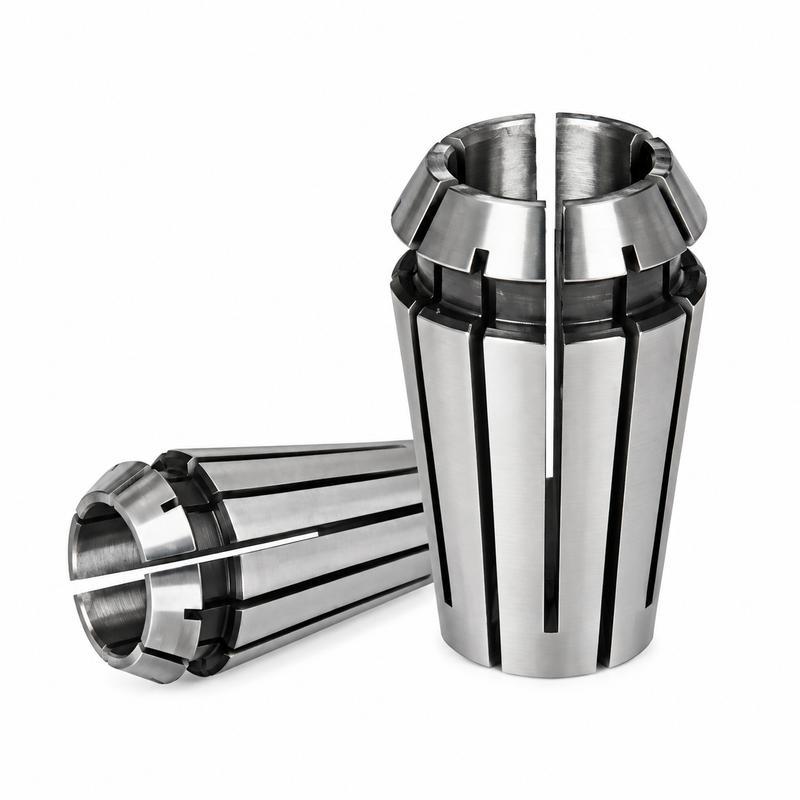

ER8 ER Collet

ER8 ER Collet

• ER8 Collet follows DIN 6499 standard
• The standard ER collet is the most widely used clamping system in the world
• Made from EN-47 Alloy spring steel for spring action and fully hardened
• ER Standard Precision Collet with 10 microns run out

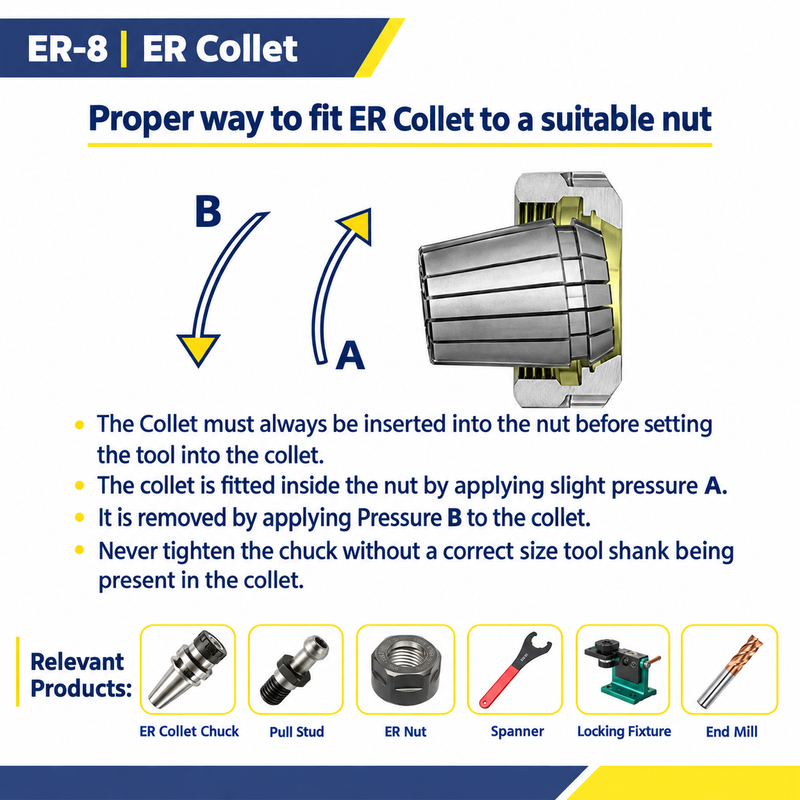

• Install into an ER collet chuck or holder to tightly grip round-shank tool bits in milling machines

NOTE: The size indicated on the collet is the largest size it can hold and can be collapsed smaller within its collapse range of (0.5 mm). For example, ER8 4 mm can grab a round shank from 4 mm diameter to 3.5 mm diameter.

Application:

ER8 collets are ideal for many machining operations such as

• Boring
• Milling
• Reaming
• Tapping
• Grinding

Suitable Products:

• Carbide End Mills
• ER Collet Chucks (BT/CAT/HSK/ISO/MT/R8/SK/Straight Shank)
• ER Collet Chuck Nuts
• ER Collet Chuck Spanners
• Pull Stud (Retention Knob)
• Locking Fixtures
