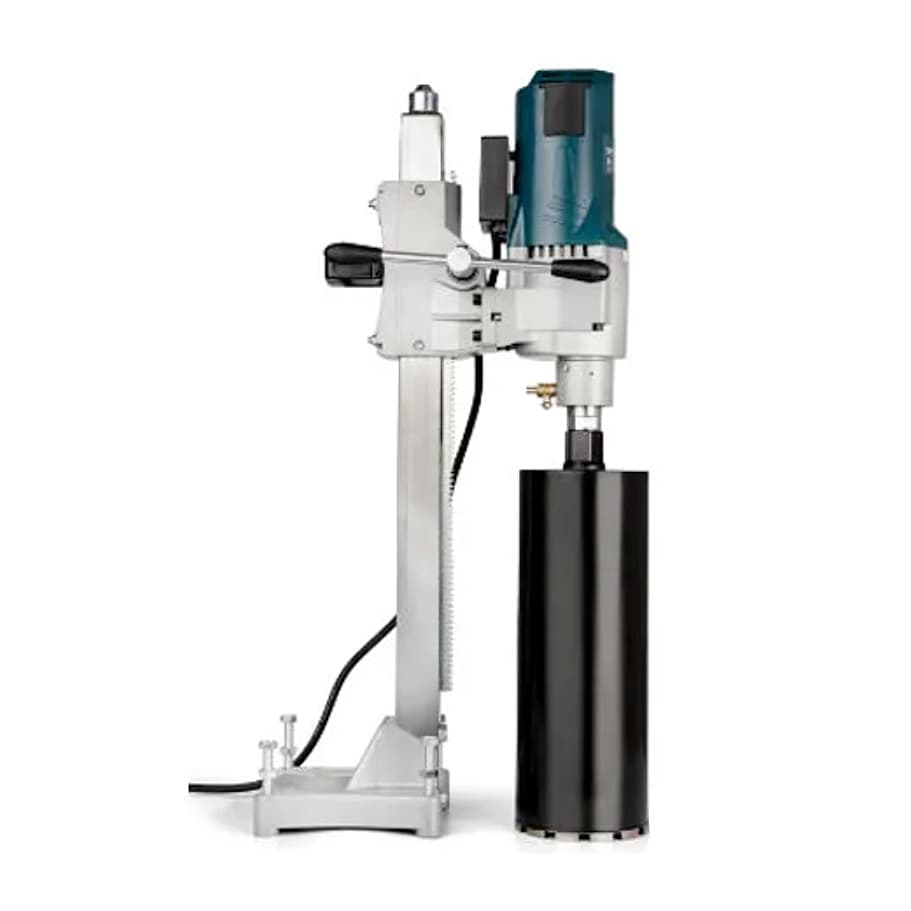

The Max MXDD200 is a heavy-duty, high-performance diamond core drill designed for professional concrete coring work. With a powerful 3,250 W motor, it delivers ample power to handle large-diameter drilling it supports core bits ranging from 52 mm up to 200 mm in diameter, making it highly suitable for major construction, plumbing, or utility openings. The tool uses a low-speed, high-torque design, spinning at around 880 rpm (no-load) for optimal control and stability during drilling. It is built for wet drilling, with a maximum water pressure rating of 3 bar, helping to cool the diamond bit, reduce dust, and increase bit life. For safety, the MXDD200 incorporates a Portable Residual Current Device (PRCD) to reduce the risk of electric shock, especially on job sites where water is used. Despite its power, the drill is relatively portable at 18.6 kg, allowing for rig-mounted or hand-held operation when paired with a suitable core drilling stand. Overall, this diamond drill is engineered for demanding structural work, enabling clean, accurate coring in reinforced concrete and similar hard materials.
Technical Specifications:
| Power Input | 3250 W |
| No Load Speed | 880/Min |
| Voltage | 220-240V |
| Max. Water Pressure | 3 Bar |
| Drilling Rang In Concrete | 52-200mm |
| Weight | 18.6Kg |
| Portable Residual Current Device (For User Safety) |
Yes |
Features & Benefits:
-
Very high power (3.25 kW) allows drilling very large, deep holes in concrete / masonry.
-
Large diameter capacity: Can handle core bits up to 200 mm — very useful for big plumbing, wiring, or structural jobs.
-
Water compatibility: With support for water pressure, it’s suitable for wet core drilling, which helps cool the bit and reduce dust.
-
Safety feature: Built-in PRCD enhances safety when working on construction sites.
-
Heavy-duty build: With its high power and capacity, it’s designed for professional use / job-site core drilling.
